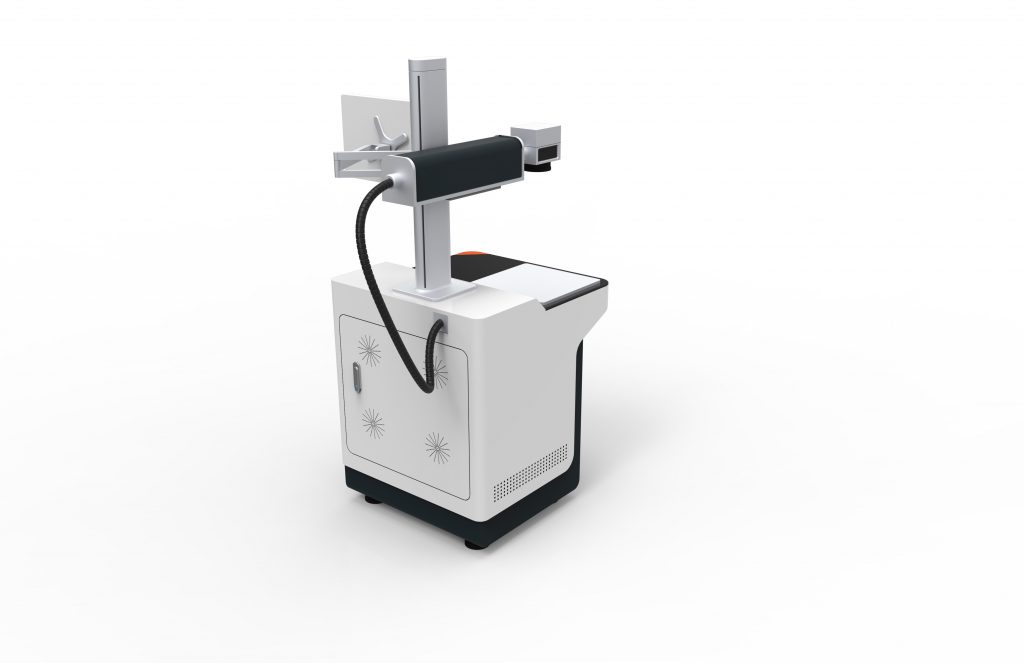

BLR-T Heavy Duty Desktop Fiber Laser Marker

BLR-T 30W Fiber Laser Marker:

  • Working area 100*100mm / 200*200mm / 300*300mm
  • Laser power 30W
  • Working Voltage 220V±10%/50Hz/4A
  • Minimum Line Width 0.02mm
  • Engraving Line Speed ≤7000mm/s
  • Minimum Character: 0.15mm
  • Repeatability Accuracy: +/- 0,001mm
  • Marking Depth 0-0.5mm
  • Laser Module Life: 100000 Hours

Standard Configuration:
1.SCANLAB scanning from Germany
2.NORTH-SMITH lens from the USA
3.Raycus fiber laser source
4.JCZ control system
5.Easy focusing device

The Advantages of Fiber Laser Metal Marking:

  • It does not affect the integrity of the part;
  • Produce a high-contrast permanent mark;
  • Low cost in use.
  • No wearing parts and requires almost no maintenance;
  • High Speed;
  • High Precision;
  • Energy Saving;
  • High Reliability;
  • Integrated and Compact;
  • No Consumables;
  • Can be operated from almost any Windows-based software;
