Specifications:

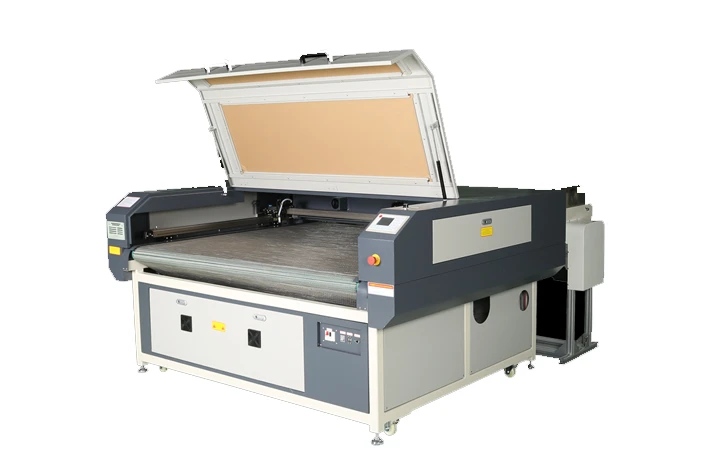

The Beyond Laser HS-R laser system is a high production laser cutter for use with roll materials. This range features an aluminum conveyor bed that is synchronized with the powered roll feeder in order to bring your material forward as needed. It can also cut with intermittent feeding to produce cuts which are longer than the table. Although designed for roll materials, this machine is versatile enough to laser engrave or laser cut flat materials just like our traditional laser machines.

Models:
HS-R1610: 1600x1000mm
HS-R2010: 2000x1000mm
HS-R2626: 2600x2600mm
HS-R Range – Heavy Duty Production cutting and engraving of roll materials – Examples: Fabric & Leather

Main Features:
USB port interface
32MB Program storage in machine
Analog laser control to reduce power around tight curves
Coated ZNSE meniscus focusing lens
Red Dot alignment pointer for accurate positioning of your parts

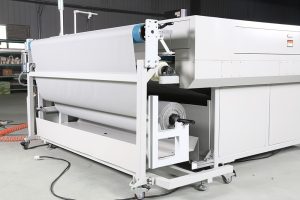

Materials are fed through from the back of the machine by a powered roll feeder
Drift corrector for feeding the material
Intermittent feeding for cuts longer than the table
Water cooler for the CO2 laser tube, exhaust fan, and air assist

Technical Parameters:
Max.Acceleration: 0.2G
Max running speed: 300mm per second
X/Y location precision: 0.1mm/m
Power Supply: AC220V±10% 50HZ
X/Y repeated location precision: ±0.1mm
Machine gross power: ≤1250W
Running Temperature: 0°C-40°C
Working: Auto-feeding system
Formats: CDR、BMP、PLT、GPEG、DXF、DST、AI
Applied Materials: Fabric, leather and other non-metal material

Beyond Laser HS-R CO2 laser cutting system is supplied with the following:
Air assist pump
Industrial water chiller
Extraction blower
Red Dot Pointer
Auto Feeding Conveyor Work Table
Laser software
On-site installation
Full operator training
12 Month Warranty
Unlimited support
