Technical Parameters

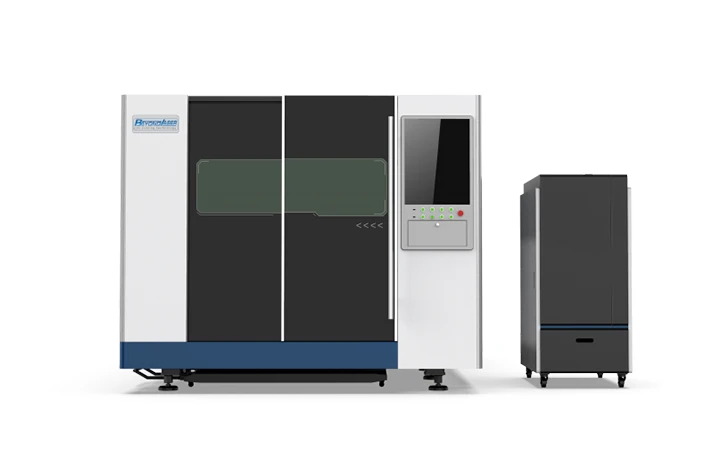

BL-4020H
Processing Area: 4000*2000mm
Laser power: 6000W / 8000W
Complex-axis running speed: 140m/min
Max. acc. speed: 1.5G
Positioning Accuracy: 0.05mm/m
Reposition Accuracy: ±0.02mm
Electrical Components: Schneider from France
Computer: Industrial Computer

Configuration:
Fiber Laser Source: nLight Designed in the USA
Transmission System: YYC Rack & Pinion manufactured in Taiwan
Guide Rail: Hiwin Linear Guide manufactured in Taiwan
Speed Reducer: Manufactured by Motorreducer in France
Motor: Fuji Servo Motor manufactured in Japan
Laser Head: Swiss Raytools (Auto Focus)
System: Cypcut
Low Pressure Aviation Aluminium Gantry: Manufactured by Beyond Laser
Max Cutting Thickness: 8000W
Stainless Steel (N2): 30mm
Carbon Steel (O2): 25mm
Aluminium (O2): 30mm
Copper (N2): 12mm
Brass (N2): 15mm
