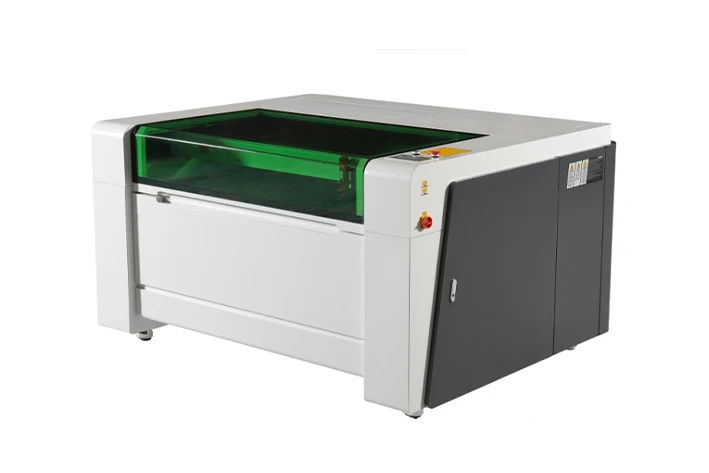

HS-S Range
Location Precision: ±0.05mm
Repeat precision: 0.05mm
Max cutting Speed: +-300mm per second
Laser Power: 60W & 80W CO2 glass laser tube
Software System: V6332G
Blowing System: Lower blowing system
Optical Path: Fly light path
Graphic formats supported: DXF、AI、PLT、CDR、BMP、PLT、DST etc
Applicable Material: Fabric, Leather, Rubber, Paper, Cardboard, Acrylic, MDF, Plywood etc

Introduction
The design of the motorised up and down table and rotary attachment is ideal for engraving cylinders, bottles and thick materials.

Technical lndex:
Processing Area: 600x 400mm / 900×600mm / 1300x900mm / 1600x1000mm
Ascending and descending distance: 200mm (for honeycomb table) / 300mm (for knife-strip table)
Laser Power: 60 / 80W
Resolution Ratio:0.0064mm
Minimum shaping character: Letter 1×1mm
Location precision: <0.01/mm
Compatible software: CorelDraw, AutoCAD, Photoshop, ect
Power supply: AC110 – 220±10%, 50-60Hz
Gross Power: 1100W
Graphic format supported: .BMP, .PLT, .AI, .DXF, .DST, .GIF ect.

Beyond Laser HS-S CO2 laser cutting system is supplied with the following:
Air assist pump
Industrial water chiller
Extraction blower
Motorised Table
Optional Rotary Attachment
Through The Lens Red Dot Pointer
Knife Strip and Honeycomb Work Tables
Laser software
On-site installation
Full operator training
12 Month Warranty
Unlimited support
